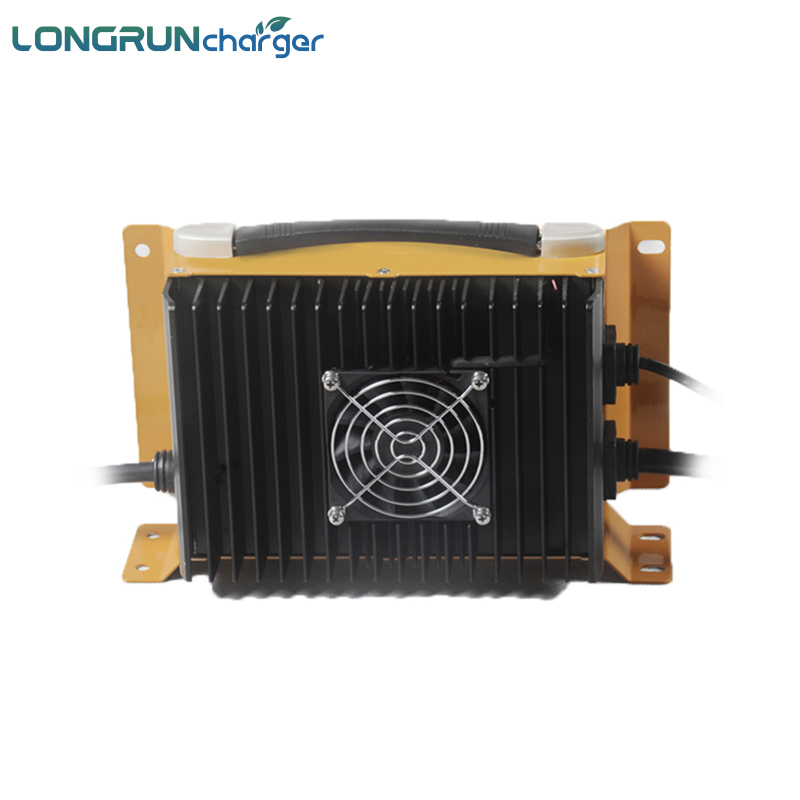

Longrun Electric Car Q1-2000 36V 48V 72V Lifepo4 Lead Acid Battery ON Board Charger

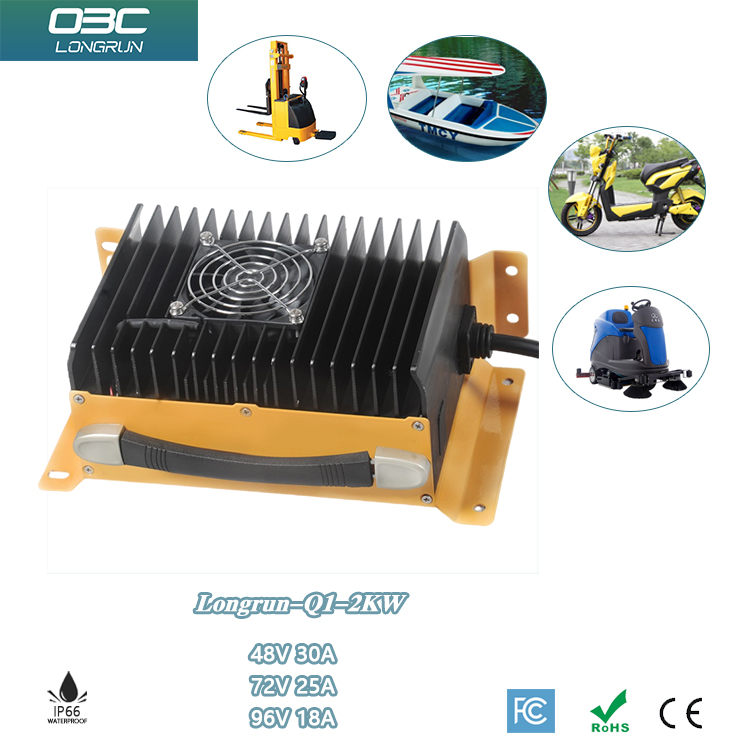

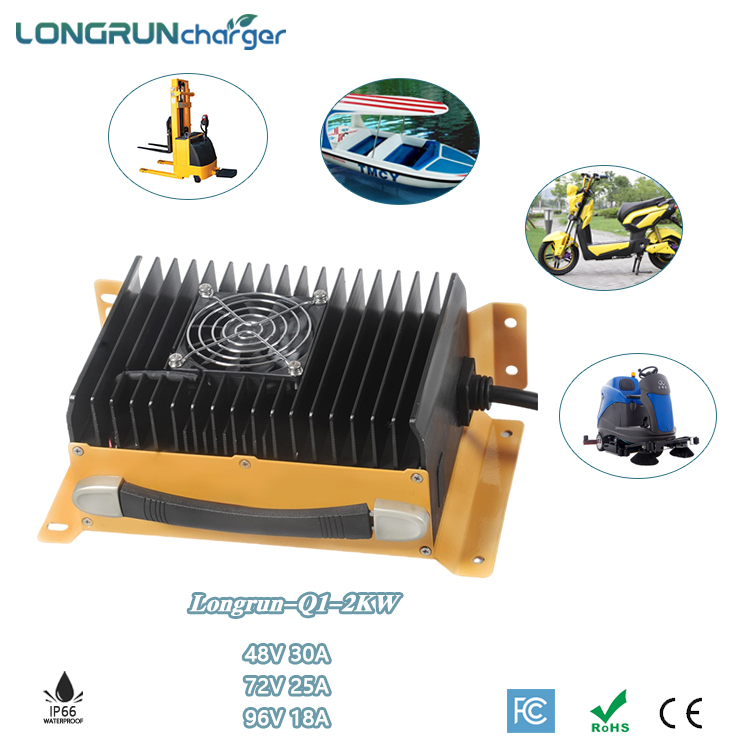

Longrun Electric Car Q1-2KW 36V 48V 72V Lifepo4
Lead Acid Battery ON Board Charger
Longrun-Q1 Series Input voltage AC 220v ± 15%,Output voltage DC 12v-120v.

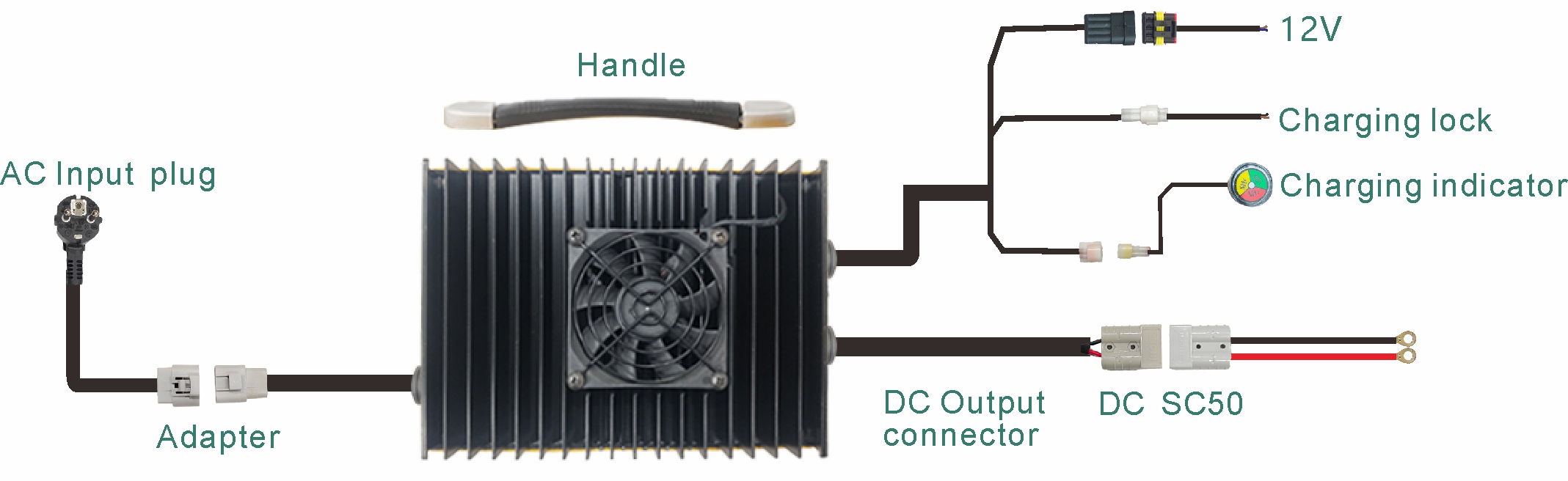

On-board charger standard

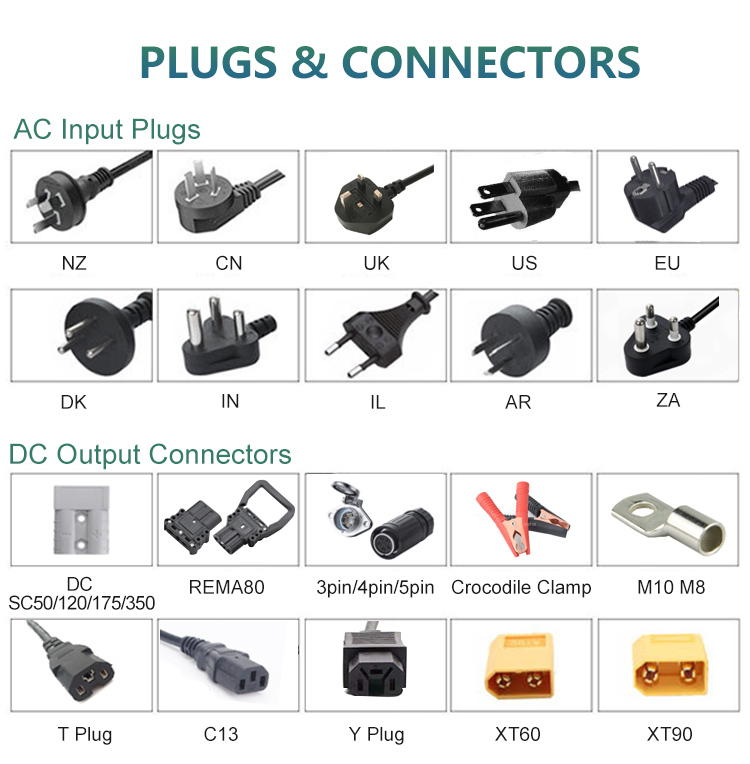

1, Input connector（optional）
2, PP and CP signal (need marked)
3, Output connector（optional）
4, Charging indicator(Built -in or External)
5. Anti-walking line
6, Handle (optional)
7, Auxiliary power 12v 3a/5a (optional)
8, CANBUS:Not
9, Temperature control sensor module (only for lead acid battery)
Q1-2KW Input ≤12.5a 12v3a Option | |||
| Rated Voltage(v) | Battery Type(Strings) | Max Output Current(a) | Others |

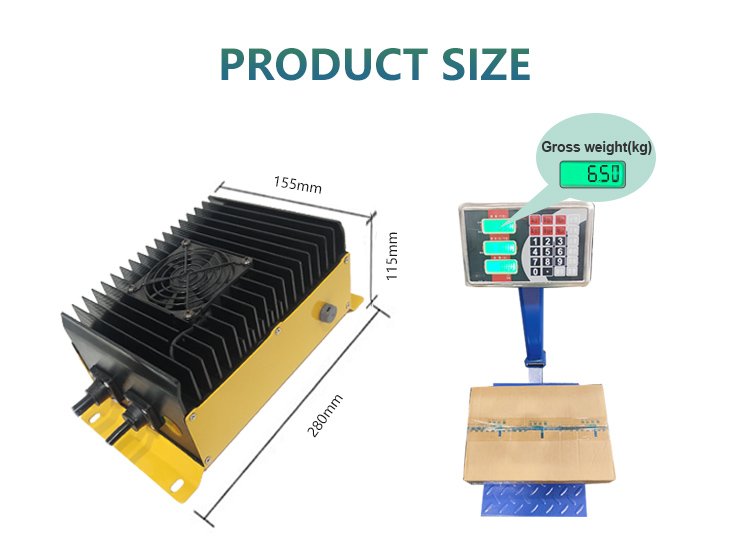

| 12/24 | 4S/8S LiFePO4 | 40 | Size:280x155x115cm |
| 36/48/60 | 15S/16S LiFePO4 | 30 | |
| 72 | 20S Li-ion | 25 | Net Weight:5kg |
| 80/84 | 23S LiFePO4 | 20 | |
| 96/108 | 18 | ||
Product features
a、 Up to 95% efficiency;
b、 Strong protection function;
c、 Wide range of operating temperatures;
d、 100% full load aging test;
e、Up to IP66 high protection level;
f、 The seismic rating of automobile;
g、 In the process of charging the battery for intelligent temperature compensation to maximize the battery life.
Protection features
Output over voltage protection
Output over current protection
Output short circuit protection
Output reverse protection
Over temperature protection of charger
Over temperature protection of battery
Product work curve and performance
The lithium battery charging curves:
The Lead acid batteries have different charging curves according to different battery brands and types.
Typical battery charging curve diagram
More Details Please Free Let me Know
