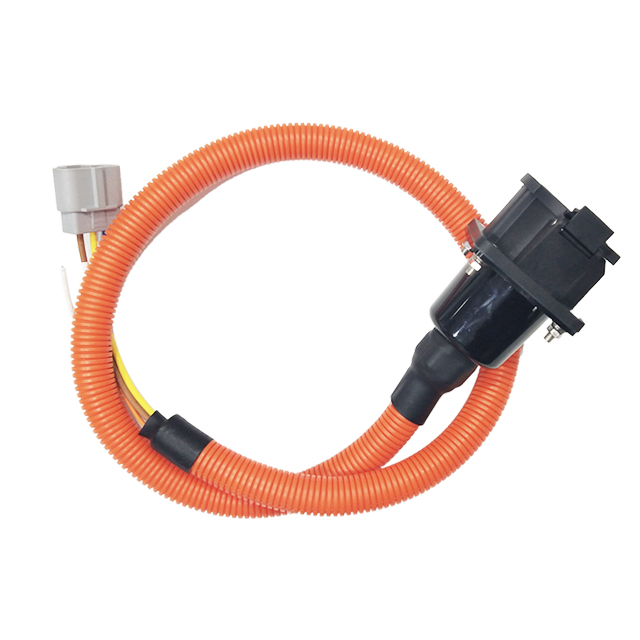

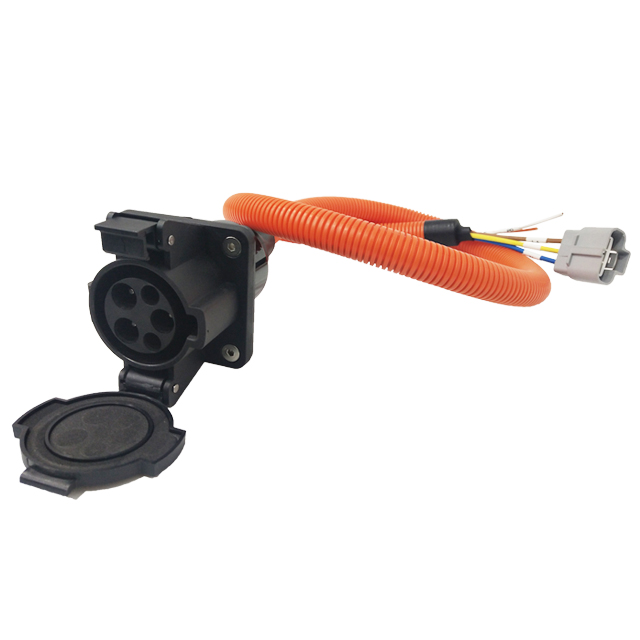

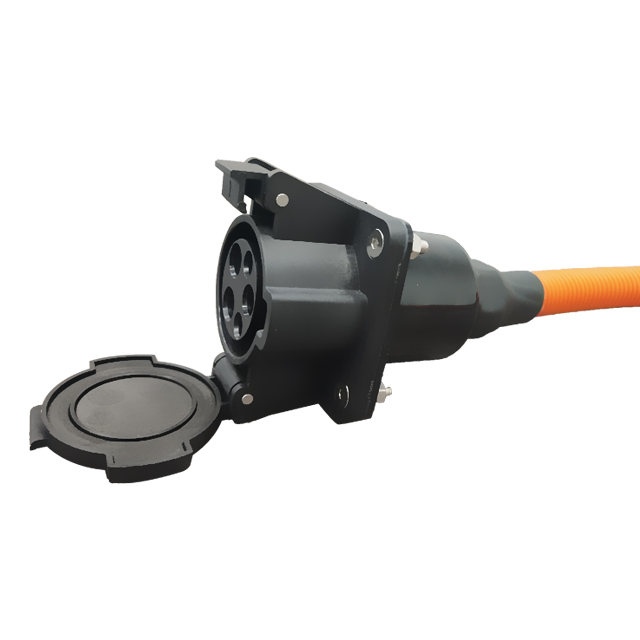

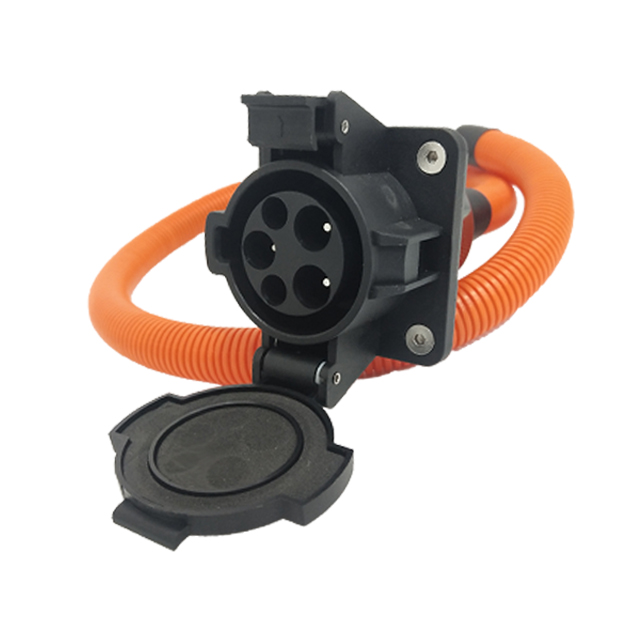

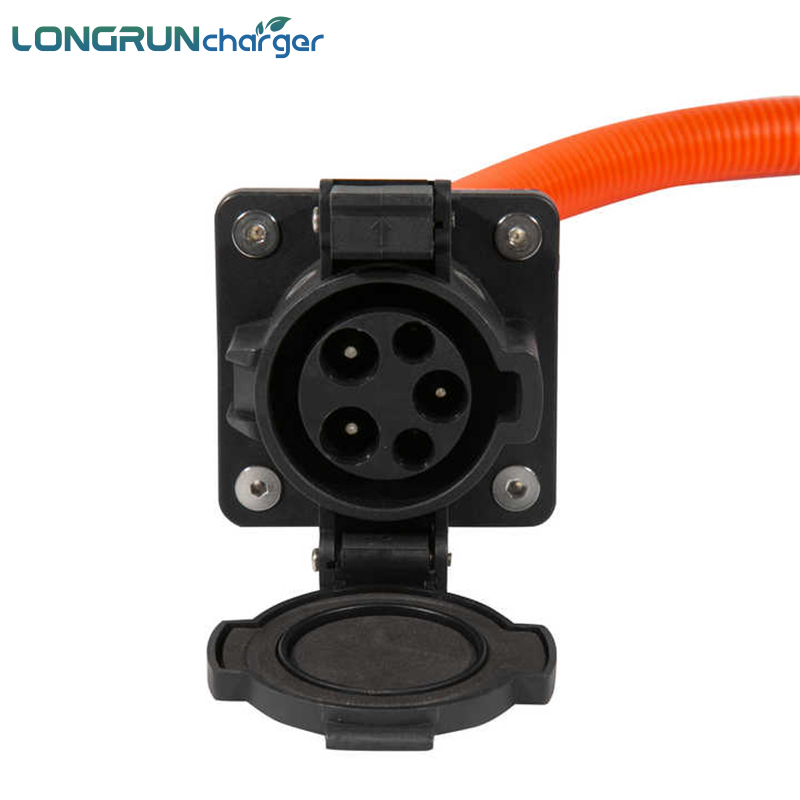

Longrun EV Charging Cable with J1772 Type 1 Vehicle Inlet 16A/32A EV Charging Socket

QR code
share
WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Product Name Longrun 16A/32A Charger Socket
Model Number 16A/32A J1772 Charger Socket
Material Aluminum
Brand Longrun
Email info@longruncs.com
86 19982087153
Reservation Now
DetailReview(0)

Longrun EV Charging Cable with J1772 Type 1 Vehicle Inlet 16A/32A EV Charging Socket


Technical parameter
Standards / procedures
IEC61851-2017
Voltage type
AC110-250V
Charging mode/case type
Mode 3，case B
Environment condition
Ambient temperature (operation)
-30 °C ... 50 °C
Ambient temperature (storage / transportation)
-40 °C ... 80
Maximum altitude
2000m
IP code
IP55(Mated)
Electrical characteristics
Phase number
Single-phase
Rated current
16A/32A
Rated voltage
250V
RC resistance
680Ω
Insertion / extraction times
> 10000 times
Shell color
Black + Orange
Shell material
Plastic
Cable
Cable structure
3 x 2.5mm^2 + 2 x0.5mm^2(Reference )
Wiring standards / specifications
IEC 61851




More Details Please Free Let me Know
