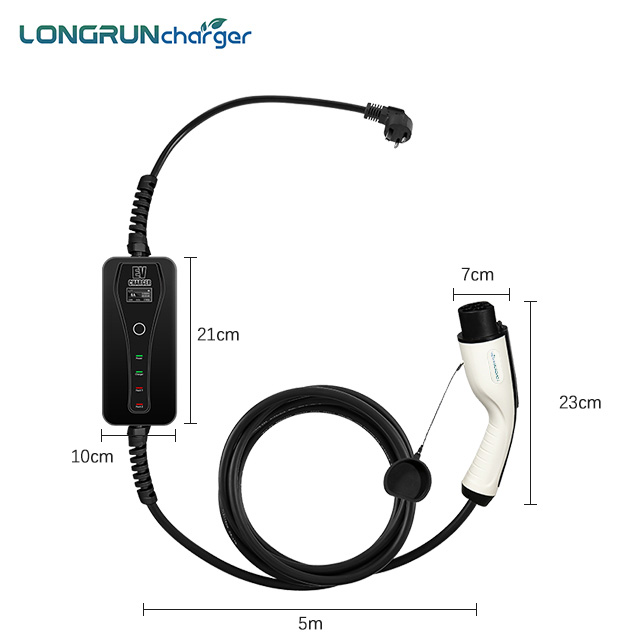

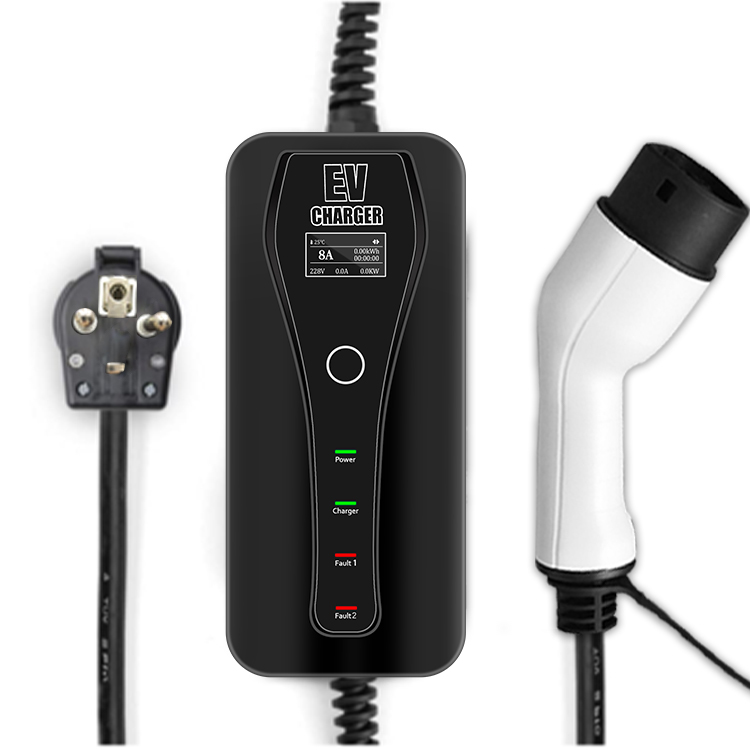

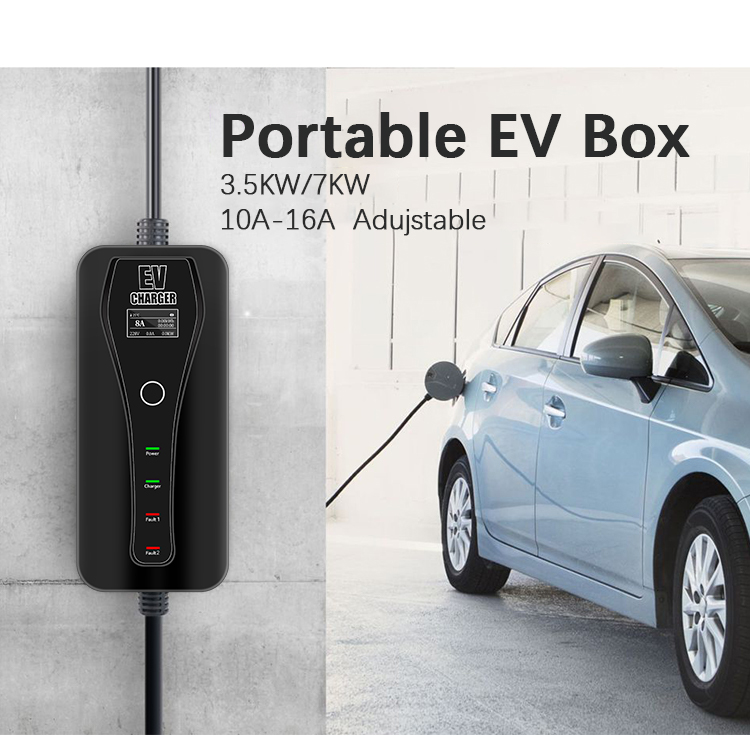

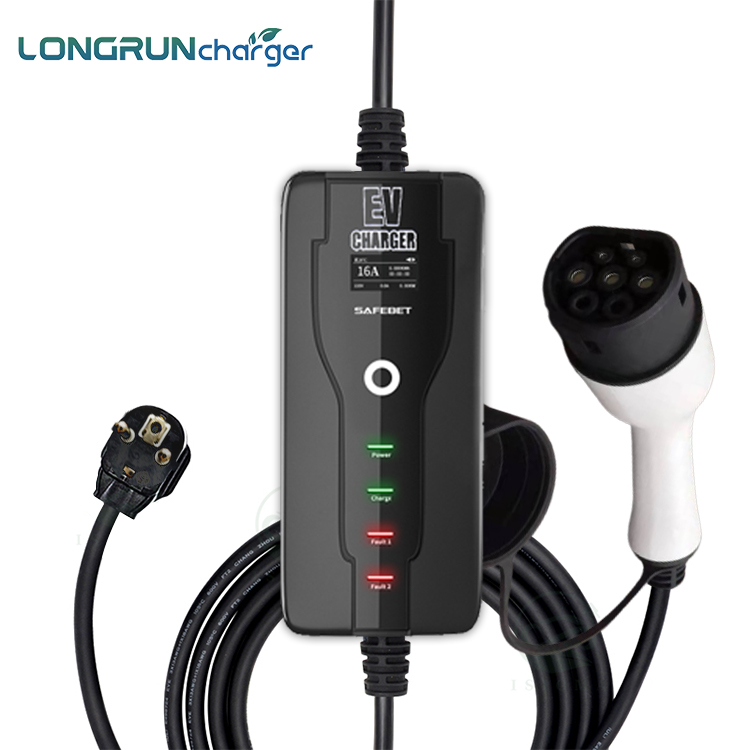

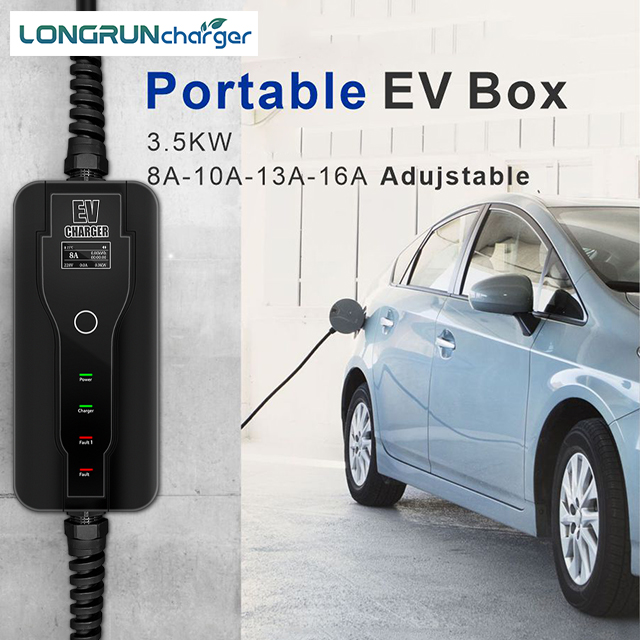

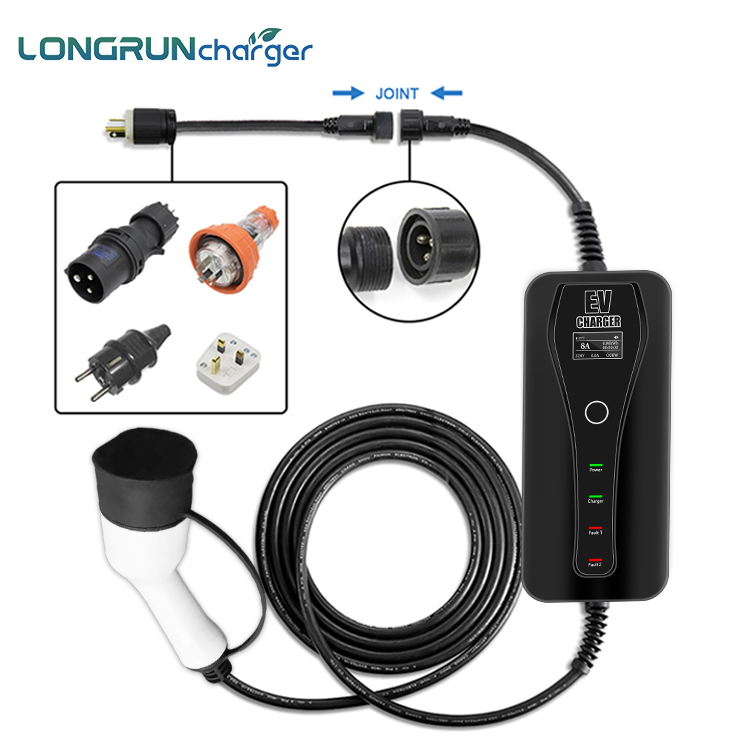

Product Name Longrun Portable 16A/32A Mode2 Level 2 Waterproof IEC 62196 Type2 EV Charger

Model Number 3.5KW/7KW IEC62196 EV Charger

Material ABS

Brand Longrun

Email info@longruncs.com

86 19982087153

Reservation Now

DetailReview(0)

Longrun Portable 16A/32A Mode2 Level 2 Waterproof

IEC 62196 Type2 EV Charger

Technical parameter
Standards / procedures	IEC62196-2014/IEC61851-2017
Voltage type	AC110-250V
Charging mode/case type	Mode 2，case B
Environment condition
Ambient temperature (operation)	-30 °C ... 50 °C
Ambient temperature (storage / transportation)	-40 °C ... 80
Maximum altitude	2000m
IP code	IP54 (Unmated)/IP55(Mated)
Electrical characteristics
Phase number	Single-phase
Rated current	16A/32A
Rated voltage	250V
RC resistance	680Ω
Insertion / extraction times	> 10000 times
Shell color	Black / White
Shell material	Plastic
Cable
Cable structure	3 x 2.5mm^2 + 2 x0.5mm^2(Reference )
Cable length	5 m(customized)
Wiring standards / specifications	IEC 61851-2017

Advantages
Streamlined design with beautiful appearance
The shell is designed as a whole
The contacts of power terminal and signal terminal are silver plated
Enterprise has passed ISO 9001:2015
Ergonomic design at the handle, antiskid treatment
The product has passed CE certification and its performance is safe and reliable.
Multiple seal structure design, excellent waterproof performance
Products are available in many colors and can be customized according to requirements.

‍

More Details Please Free Let me Know
